Overview
Panoto designs and produces complete radiators for many different engines on both prime and emergency gensets and Ups systems. This type of coolers can give high ambient capacity and low sound levels.

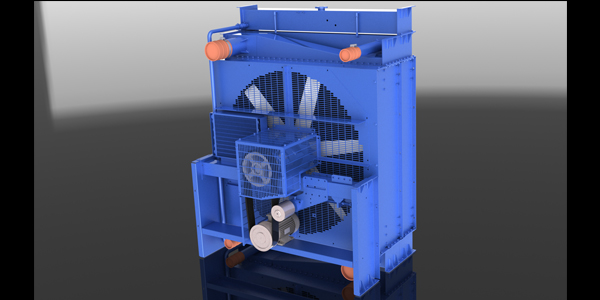

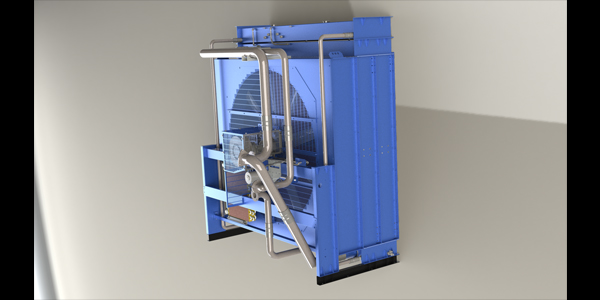

On this application radiator is placed to engine frame where the fans are mounted on radiator and driven by the diesel engine via belt and pulley connection. It allows to use different fans and different speeds.
Heavy Duty bearings support the fan drive & shaft besides where required, a belttension mechanism is fitted.

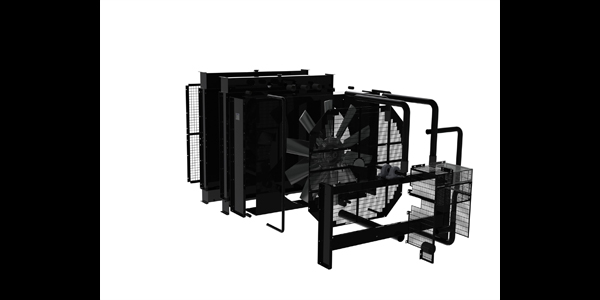

Scope Of Supply
Cores and expansion tanks
Pipes, flanges, clamps, hoses
Fans
Bearings
Pulley, Belt, Belt tension mechanism (optional)
Protective guards
Color options
MTU Engines
MTU 12V4000 G23
MTU 12V4000 G23
MTU 12V4000 G23
MTU 12V4000 G23
Cummins Engines
Cummins KTA 50 G3
Cummins KTA 50 G3
Cummins KTA 50 G3
Cummins KTA 50 G3
Perkins Engines
Perkins 4016-61TRG2
Perkins 4016-61TRG2
Perkins 4016-61TRG2
Perkins 4016-61TRG2
Mitsubishi Engines
S16R - F1PTAW2
S16R - F1PTAW2
S16R - F1PTAW2
S16R - F1PTAW2
* For your further inquiries please send inquiry
